Plotting

The module provides methods to perform visual analytics. It provides methods to create the following plots:

Bar plot
Line plot
Pie plot

Accessor

Initialise the DataFrame with the plotting method. Minimal working example:

df.crm.plotting()

Returns:

Type	Description
`Plotting`	Returns a class called "Plotting" providing plotting analytics methods.

Methods

`plot_bar(x, y, y_2=None, pct=True, barh=False, stacked=False, switch_order=False, sort_by_col=None, sort_by_list=None, sort_asc=True, title=None, x_axis_label='Category', x_tick_labels=None, x_tick_rot=0, x_color=cfg.COLOUR_BLACK, y_axis_label='Per Cent', y_lim_min=None, y_lim_max=None, y_lim_rounded=True, y_tick_spacing=None, y_tick_digits=0, y_tick_rot=0, y_color=cfg.COLOUR_BLACK, color=None, legend=True, legend_label=None, legend_loc='upper right', fig_size=(10, 6.18), path=None, show=False)`

Minimal working example:

df.crm.plotting().plot_bar(x="DATE", y="SCORE")

Parameters:

Name	Type	Description	Default
`x`	`str`	Defines the values to plot on the x-axis. Use ".reset_index()" to access the index of the DataFrame since the index itself is not directly accessible.	required
`y`	`Union[str, list]`	Defines the values to plot on the y-axis.	required
`y_2`	`Union[str, list]`	Defines additional values to be plotted on the y-axis (with transparency).	`None`
`pct`	`bool`	Defines whether the y-axis is in percentage or absolute scale.	`True`
`barh`	`bool`	Defines whether the bar plot is horizontal or not.	`False`
`stacked`	`bool`	Defines whether the bar plot is stacked or not.	`False`
`switch_order`	`bool`	Defines whether to switch the order of the bars within one tick.	`False`
`sort_by_col`	`str`	Defines the column to sort.	`None`
`sort_by_list`	`list`	Defines the list to sort in case of categorical items which have no intrinsic sorting order.	`None`
`sort_asc`	`bool`	Sorts the previously defined column or list ascending.	`True`
`title`	`str`	Defines the title.	`None`
`x_axis_label`	`str`	Defines the x-axis label.	`'Category'`
`x_tick_labels`	`Union[str, list]`	Defines the x-tick labels. It can be an explicit list of labels or, in case of a date axis, a format code based on the 1989 C standard such as "%b %Y".	`None`
`x_tick_rot`	`int`	Defines the x-tick labels rotation.	`0`
`x_color`	`str`	Defines the color of the x-ticks, the x-tick labels, and the x-axis label.	`COLOUR_BLACK`
`y_axis_label`	`str`	Defines the y-axis label.	`'Per Cent'`
`y_lim_min`	`Union[float, Timestamp, date]`	Defines the y-axis minimum limit.	`None`
`y_lim_max`	`Union[float, Timestamp, date]`	Defines the y-axis maximum limit.	`None`
`y_lim_rounded`	`bool`	Defines whether the y-axis limits should be rounded. This only works for limits which are not explicitly defined via "y_lim_min" or "y_lim_max". The values are rounded to the next order of magnitude or zero if appropriate.	`True`
`y_tick_spacing`	`float`	Defines the y-tick spacing in absolute values.	`None`
`y_tick_digits`	`int`	Defines the y-tick digits.	`0`
`y_tick_rot`	`int`	Defines the x-tick labels rotation.	`0`
`y_color`	`str`	Defines the color of the y-ticks, the y-tick labels, and the y-axis label.	`COLOUR_BLACK`
`color`	`Union[str, list]`	Defines the colour of the bars. Defaults to standard colour palette.	`None`
`legend`	`bool`	Defines whether a legend is plotted or not.	`True`
`legend_label`	`Union[str, list]`	Defines the legend label.	`None`
`legend_loc`	`str`	Defines the legend location.	`'upper right'`
`fig_size`	`tuple`	Defines the figure size.	`(10, 6.18)`
`path`	`str`	Defines the saving path including the filename of the figure and should be entered as r"C:\<path>\<filename>.<image_format>".	`None`
`show`	`bool`	If True, plot is shown.	`False`

Returns:

Type	Description
`BytesIO`	Returns a bar plot.

plot_line(x, y, y_2=None, pct=True, sort_by_col=None, sort_by_list=None, sort_asc=True, title=None, x_axis_label='Category', x_tick_labels=None, x_tick_rot=0, x_color=cfg.COLOUR_BLACK, y_axis_label='Per Cent', y_lim_min=None, y_lim_max=None, y_lim_rounded=True, y_tick_spacing=None, y_tick_digits=0, y_tick_rot=0, y_color=cfg.COLOUR_BLACK, color=None, linewidth=None, linestyle=None, marker=None, markersize=None, markeredgewidth=None, markeredgecolor=None, markerfacecolor=None, vline=None, legend=True, legend_label=None, legend_loc='upper right', fig_size=(10, 6.18), path=None, show=False)

Minimal working example:

df.crm.plotting().plot_line(x="DATE", y="SCORE")

Parameters:

Name	Type	Description	Default
`x`	`str`	Defines the values to plot on the x-axis. Use ".reset_index()" to access the index of the DataFrame since the index itself is not directly accessible.	required
`y`	`Union[str, list]`	Defines the values to plot on the y-axis.	required
`y_2`	`Union[str, list]`	Defines additional values to be plotted on the y-axis (with transparency).	`None`
`pct`	`bool`	Defines whether the y-axis is in percentage or absolute scale.	`True`
`sort_by_col`	`str`	Defines the column to sort.	`None`
`sort_by_list`	`list`	Defines the list to sort in case of categorical items which have no intrinsic sorting order.	`None`
`sort_asc`	`bool`	Sorts the previously defined column or list ascending.	`True`
`title`	`str`	Defines the title.	`None`
`x_axis_label`	`str`	Defines the x-axis label.	`'Category'`
`x_tick_labels`	`Union[str, list]`	Defines the x-tick labels. It can be an explicit list of labels or, in case of a date axis, a format code based on the 1989 C standard such as "%b %Y".	`None`
`x_tick_rot`	`int`	Defines the x-tick labels rotation.	`0`
`x_color`	`str`	Defines the color of the x-ticks, the x-tick labels, and the x-axis label.	`COLOUR_BLACK`
`y_axis_label`	`str`	Defines the y-axis label.	`'Per Cent'`
`y_lim_min`	`Union[float, Timestamp, date]`	Defines the y-axis minimum limit.	`None`
`y_lim_max`	`Union[float, Timestamp, date]`	Defines the y-axis maximum limit.	`None`
`y_lim_rounded`	`bool`	Defines whether the y-axis limits should be rounded. This only works for limits which are not explicitly defined via "y_lim_min" or "y_lim_max". The values are rounded to the next order of magnitude or zero if appropriate.	`True`
`y_tick_spacing`	`float`	Defines the y-tick spacing in absolute values.	`None`
`y_tick_digits`	`int`	Defines the y-tick digits.	`0`
`y_tick_rot`	`int`	Defines the x-tick labels rotation.	`0`
`y_color`	`str`	Defines the color of the y-ticks, the y-tick labels, and the y-axis label.	`COLOUR_BLACK`
`color`	`Union[str, list]`	Defines the colour of the lines. Defaults to standard colour palette.	`None`
`linewidth`	`float`	Defines the line width.	`None`
`linestyle`	`str`	Defines the line style.	`None`
`marker`	`str`	Defines the marker.	`None`
`markersize`	`float`	Defines the marker size.	`None`
`markeredgewidth`	`float`	Defines the marker edge width.	`None`
`markeredgecolor`	`str`	Defines the marker edge color.	`None`
`markerfacecolor`	`str`	Defines the marker face color.	`None`
`vline`	`Union[int, float]`	Adds a dashed vertical line at position x = vline.	`None`
`legend`	`bool`	Defines whether a legend is plotted or not.	`True`
`legend_label`	`Union[str, list]`	Defines the legend label.	`None`
`legend_loc`	`str`	Defines the legend location.	`'upper right'`
`fig_size`	`tuple`	Defines the figure size.	`(10, 6.18)`
`path`	`str`	Defines the saving path including the filename of the figure and should be entered as r"C:\<path>\<filename>.<image_format>".	`None`
`show`	`bool`	If True, plot is shown.	`False`

Returns:

Type	Description
`BytesIO`	Returns a line plot.

`plot_pie(x, y, sort_by_col=None, sort_by_list=None, sort_asc=True, title=None, x_tick_labels=None, explode=None, color=None, autopct='%1.1f%%', autocolor=cfg.COLOUR_WHITE, startangle=90, radius=1, fig_size=(10, 6.18), path=None, show=False)`

Minimal working example:

df.crm.plotting().plot_pie(x="DATE", y="SCORE")

Parameters:

Name	Type	Description	Default
`x`	`str`	Defines the values to plot on the x-axis. Use ".reset_index()" to access the index of the DataFrame since the index itself is not directly accessible.	required
`y`	`Union[str, list]`	Defines the values to plot on the y-axis.	required
`sort_by_col`	`str`	Defines the column to sort.	`None`
`sort_by_list`	`list`	Defines the list to sort in case of categorical items which have no intrinsic sorting order.	`None`
`sort_asc`	`bool`	Sorts the previously defined column or list ascending.	`True`
`title`	`str`	Defines the title.	`None`
`x_tick_labels`	`Union[str, list]`	Defines the x-tick labels. It can be an explicit list of labels or, in case of a date axis, a format code based on the 1989 C standard such as "%b %Y".	`None`
`explode`	`tuple`	Defines the fraction of the radius with which to offset each wedge.	`None`
`color`	`Union[str, list]`	Defines the colour of the lines. Defaults to standard colour palette.	`None`
`autopct`	`str`	Defines the format of the labels inside the wedges.	`'%1.1f%%'`
`autocolor`	`str`	Defines the colour of the wedges. Defaults to the standard colour palette.	`COLOUR_WHITE`
`startangle`	`int`	Defines the angle by which the start of the pie is rotated, counterclockwise from the x-axis.	`90`
`radius`	`float`	Defines the radius of the pie.	`1`
`fig_size`	`tuple`	Defines the figure size.	`(10, 6.18)`
`path`	`str`	Defines the saving path including the filename of the figure and should be entered as r"C:\<path>\<filename>.<image_format>".	`None`
`show`	`bool`	If True, plot is shown.	`False`

Returns:

Type	Description
`BytesIO`	Returns a pie plot.

Examples

data

>>> import credit_risk_modelling as crm
>>> data = (
>>>     crm.load_data.load_data()
>>>     .crm.frequency(index="DATE", column="GRADE")
>>>     .table()
>>>     .iloc[:, 0:2]
>>>     .set_axis(["DATE", "COUNT"], axis=1)
>>> )
>>> data

        DATE  COUNT
0 2019-12-31     83
1 2020-12-31     90
2 2021-12-31     84
3 2022-12-31    118
4 2023-12-31    128

.table()

>>> (
>>>     data
>>>     .crm.plotting().plot_bar(
>>>         x="DATE",
>>>         y="COUNT",
>>>         pct=False,
>>>         x_axis_label="Date",
>>>         x_tick_labels="%d %B %Y",
>>>         y_axis_label="Count",
>>>         legend_label="Count",
>>>         show=True
>>>     )
>>> )

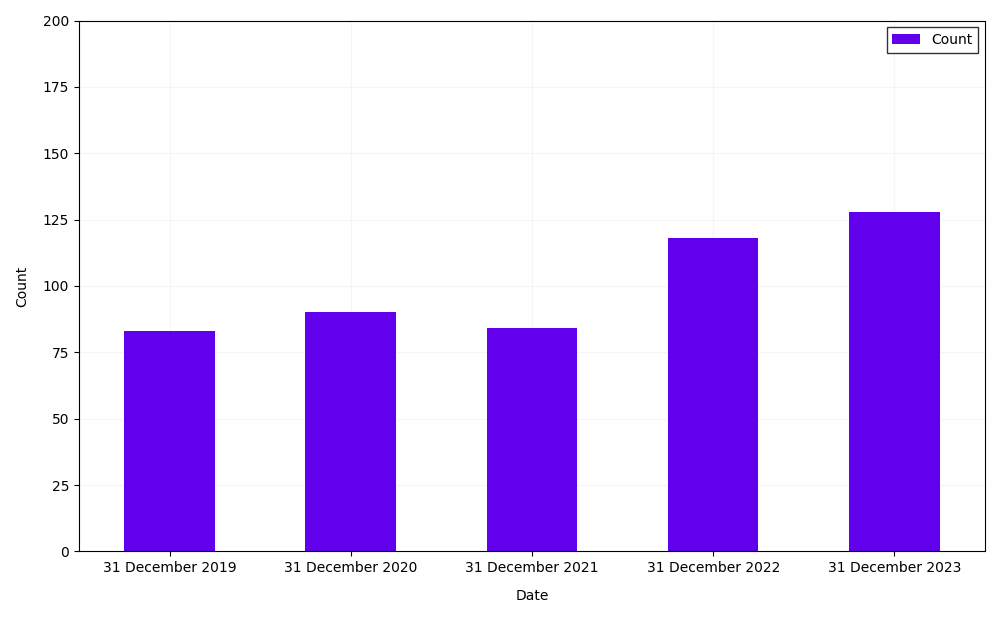

bar plot

.plot()

>>> (
>>>     data
>>>     .crm.plotting().plot_line(
>>>         x="DATE",
>>>         y="COUNT",
>>>         pct=False,
>>>         x_axis_label="Date",
>>>         x_tick_labels="%d %B %Y",
>>>         y_axis_label="Count",
>>>         legend_label="Count",
>>>         marker="o",
>>>         show=True
>>>     )
>>> )

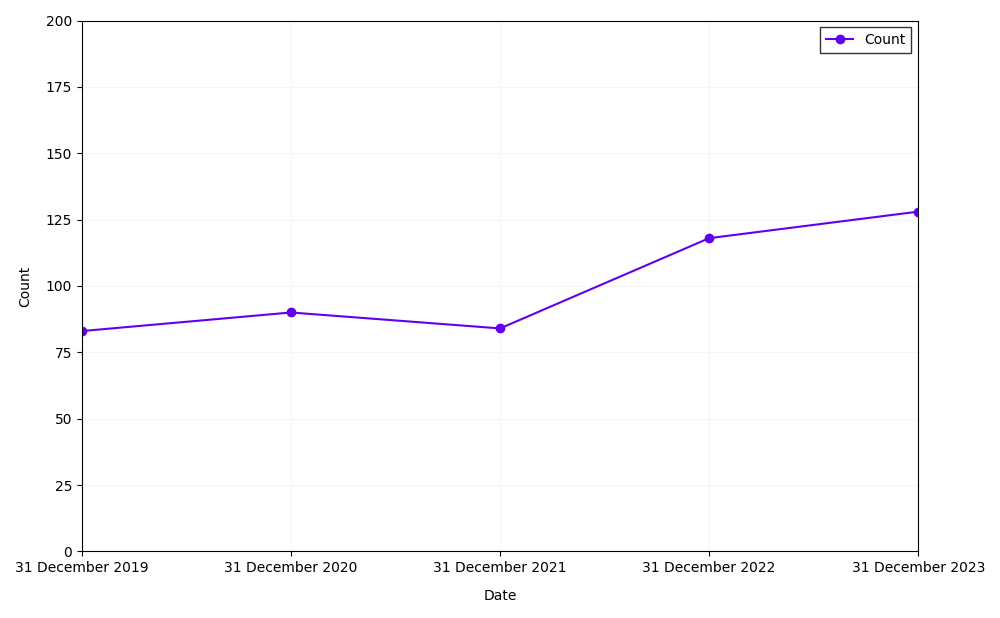

line plot

.plot()

>>> (
>>>     data
>>>     .crm.plotting().plot_pie(
>>>         x="DATE",
>>>         y="COUNT",
>>>         x_tick_labels="%d %B %Y",
>>>         explode=(0.05,) * 5,
>>>         autocolor="black",
>>>         show=True
>>>     )
>>> )

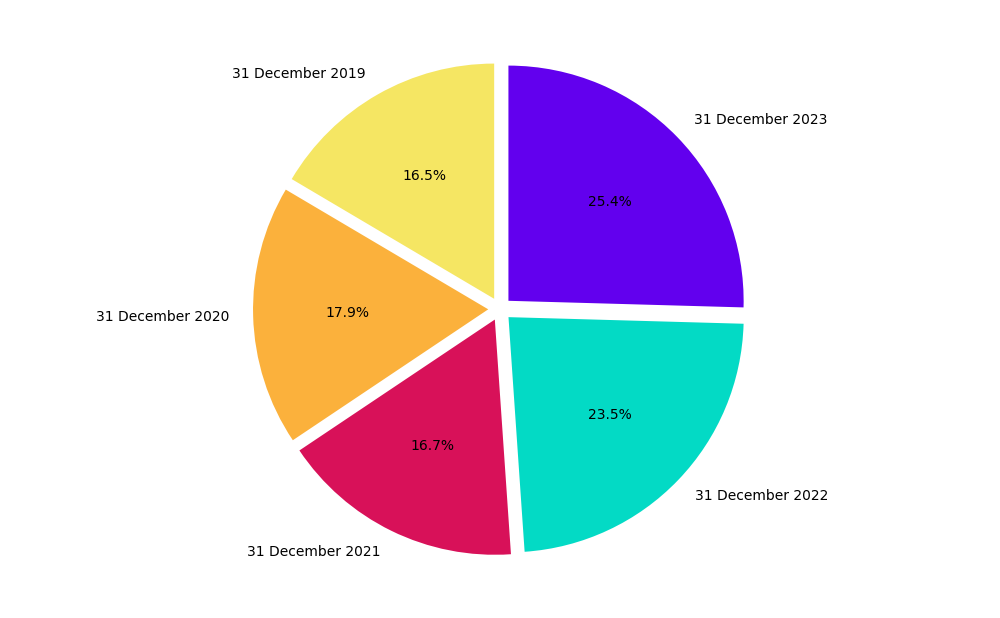

pie plot
